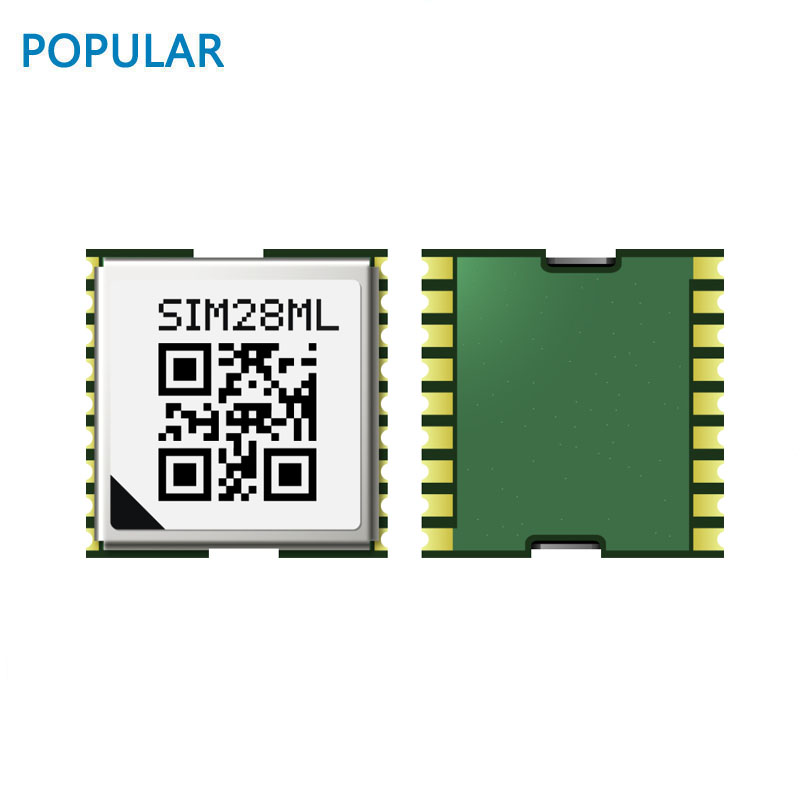

SIMCom presents a small, high performance and reliable assisted GPS module-SIM28ML. This is a standalone L1 frequency GPS module in a SMT type and it is designed with MTK high sensitivity navigation engine, which allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption.
|
Mechanical data ? Dimensions: 10.1*9.7*2.5 mm ? Weight: 0.5g Features ? Support EPOTM orbit prediction ? Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS) ? Support Jamming removing function ? Low-noise amplifier has been integrated Interfaces ? Serial interfaces - UART ? Digital I/O - TIMEMARK (PPS) - GPIO ? Protocols - NMEA - PMTK Support products ? SIM68 EVB KIT with USB V2.0 full speed interface Electrical data ? Power supply: +2.8V ~4.3V ? Backup power: +2.0V ~4.3V ? Power consumption - Acquisition: 17mA - Tracking: 16mA - Backup: 8μA ? Antenna type - Active and Passive ? Antenna power - External |
Performance data ? Receiver type - 22 tracking / 66 acquisition- channel GPS receiver GPS L1, C/A Code ? Max. update rate - 5Hz ? Sensitivity1 - Tracking: -165 dBm - Reacquisition: -160 dBm - Cold starts: -148 dBm ? Time-To-First-Fix2 - Cold starts: 32s (typical) - Warm starts: 3s - Hot starts: <1s - EPO Assist: 13s (CTTFF) ? Accuracy - Automatic Position3: 2.5m CEP - Speed4: 0.1m/s ? Operation temperature: -40℃~+85 ℃ Certifications ?CE |
